ESF introduces our new OTC Daihen Dual Robotic Welding Cell.
As we enter a new era in manufacturing – ESF is continuing to position itself with state-of-the-art technology and equipment to provide our customers with the highest quality parts, and capacity/scalability to meet our customers future growth. We know you need your parts right and on-time – all of the time – ESF is here to deliver for you.

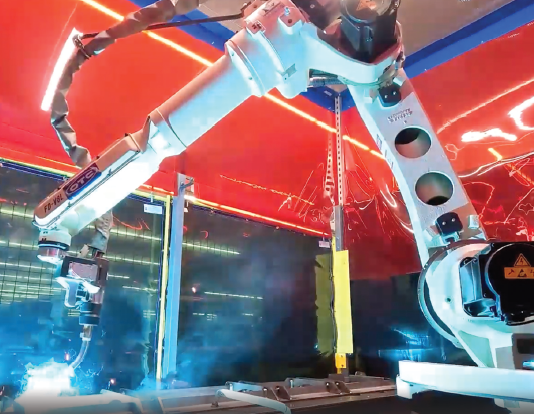

Our OTC Daihen ECO ARC 200LB Dual Robotic welding system includes:
- Robotic Welding Arm – 6 axis with extended reach
- Dual 300KG Tilt-Turn Positioners (Tilt – 135° to + 135° deg, Rotate 400°, Max payload 600 lbs)
- Cell allows you to load a part on one side while machine is welding another part on the other side.
Specifications:
- Materials: Steel, Stainless Steel, Galvanneal, Galvanized
- Process: GMAW (Mig) – Synchro Feed system
- Part Dimensions with positioners: Approx. 30” W x 30” D x 48” H
- Part Dimensions without positioners: Approx. 84” W x 30” D x 48” H
Why Important to you, our Customer:
- Precise and consistent weld beads – giving highest quality product performance and appearance.
- Cost effective for high inch count welding lengths and minimizes operator handling
- Capacity for high quantity production runs (including post welding grinding and finishing)
Example of Industry Applications:
- Elevator – Raised/Contoured Panels requiring precise and repeatable welded seams – ready for finishing
- Industrial – Internal bases, brackets, angles requiring welded seams
Do you need precisely welded/finished parts? Email sales@esfinc.com, or call 610-682-7181.
